4DN4
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4DN4
APPLICATIONS
● Water supply from wells or reservoirs
● livestock watering, dewatering
● Industrial cooling and processing
● Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 7m3/h (117L/min)
● Head: up to 59m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Maximum immersion depth: 30m
● Horse Power range: 0.5HP(0.37kw)--1HP(0.75kw)
● -Single phase 220-240V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 201SS Outlet PPO-GF Seat PPO-GF Strainer AISI 304SS/201SS Diffuser PC Impeller POM Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS -

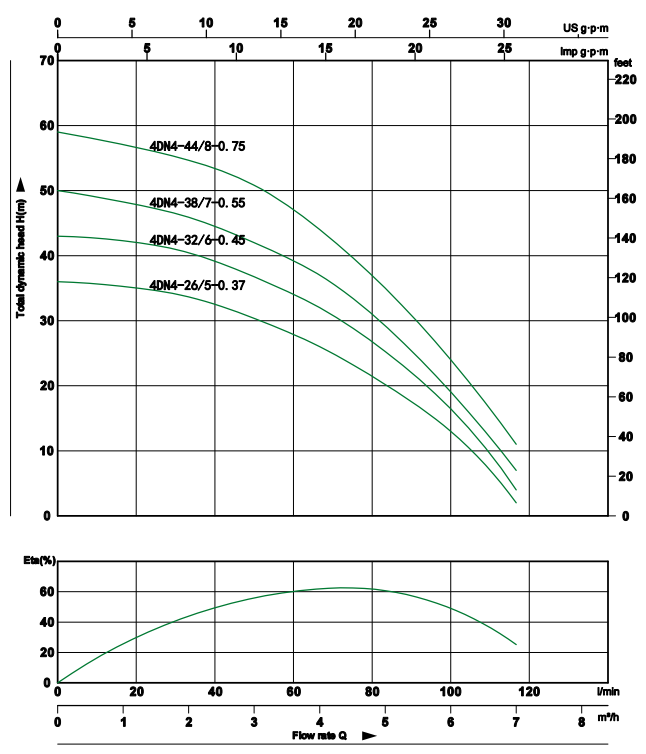

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240VKW HP DN Q m³/h 0 1.2 2.4 3.6 4.0 4.8 6.0 7.0
L/ min0 20 40 60 67 80 100 117 4DN4-26/5-0.37| 0.37 0.5 1.25" H(m) 36 35 32 28 26 21 13 2 4DN4-32/6-0.45| 0.45 0.6 1.25" 43 42 39 34 32 26 17 4 4DN4-38/7-0.55| 0.55 0.75 1.25" 50 48 45 40 38 31 19 7 4DN4-44/8-0.75| 0.75 1.0 1.25" 59 57 53 47 44 37 24 11
APPLICATIONS
● Water supply from wells or reservoirs
● livestock watering, dewatering
● Industrial cooling and processing
● Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 7m3/h (117L/min)
● Head: up to 59m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Maximum immersion depth: 30m
● Horse Power range: 0.5HP(0.37kw)--1HP(0.75kw)
● -Single phase 220-240V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
