- Commodity name: 4QJm6
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 21.6m³/h (360L/min)
● Head: up to 188m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-- 3HP(2.2kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation:B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-iron Inlet Cast-iron Strainer AISI 304SS/201SS Diffuser ABS Impeller ABS Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

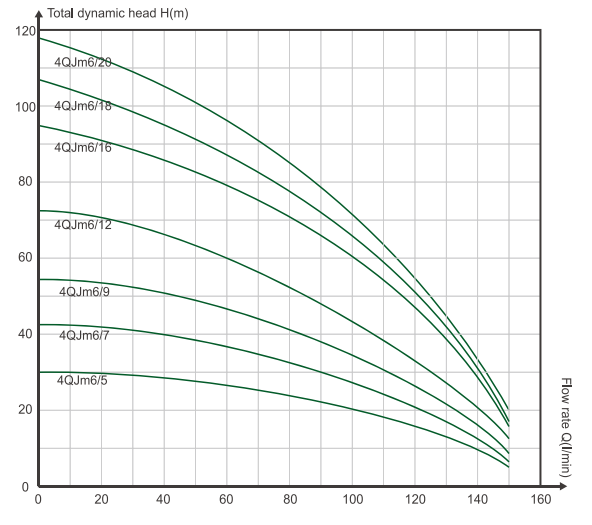

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240VKW HP DN Q m³/h 0 0.6 1.2 2.4 3.0 4.2 4.8 6.0 7.2 8.4 9.0 l/ min 0 10 20 40 50 70 80 100 120 140 150 4QJm6/5 0.37 0.5 1.5" H(m) 30 28 27 26 26 25 21 17 13 9 5 4QJm6/7 0.55 0.75 1.5" 42 40 38 36 36 35 29 24 19 13 7 4QJm6/9 0.75 1 1.5" 54 51 49 46 46 45 38 31 24 16 9 4QJm6/12 1.1 1.5 1.5" 71 68 65 62 61 58 50 42 32 22 12 4QJm6/16 1.5 2 1.5" 95 90 87 82 82 75 67 55 43 29 16 4QJm6/18 1.8 2.5 1.5" 107 102 97 92 92 85 76 62 48 32 18 4QJm6/20 2.2 3 1.5" 119 113 108 103 102 95 84 69 53 36 20 PACKAGING INFORMATION
Model
single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4QJm6/5-0.37 77×11×11.5 12.92 4QJm6/7-0.55 87×11×11.5 13.37 4QJm6/9-0.75 95×11×11.5 14.6 4QJm6/12-1.1 111×11×11.5 17.6 4QJm6/16-1.5 128×11×11.5 20.58 4QJm6/18-1.8 137x11x11.5 22.5 4QJm6/20-2.2 149x11x12.5 25.25
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 21.6m³/h (360L/min)
● Head: up to 188m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-- 3HP(2.2kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation:B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
