4SPm8
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SPm8
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

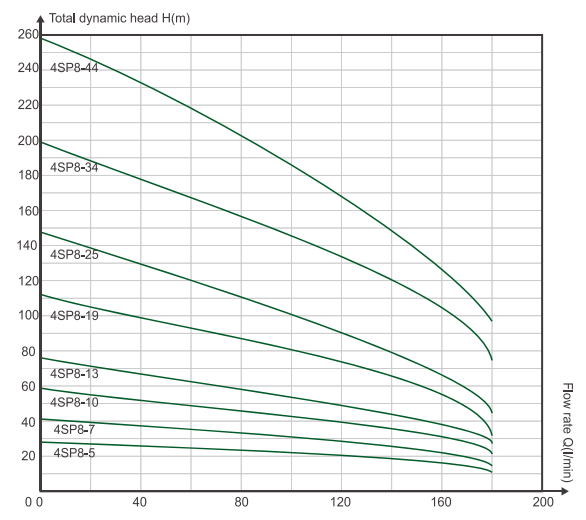

PERFORMANCE TABLE
Type Motor power Delivery N≈2850r/ min 1~
220V-240V3~
380V-415VKW HP Q m³/h 0 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8 l/ min 0 40 60 80 100 120 140 160 180 4SPm8/5 4SP8/5 0.75 1 H(m) 29 25 23 22 21 20 18 15 11 4SPm8/7 4SP8/7 1.1 1.5 41 35 32 31 30 28 25 21 15 4SPm8/10 4SP8/10 1.5 2 59 51 46 44 42 40 36 30 22 4SPm8/13 4SP8/13 2.2 3 76 66 60 57 55 52 47 39 29 4SP8/19 3 4 111 96 87 84 81 76 68 57 42 4SP8/25 4 5.5 147 126 115 110 106 100 90 75 55 4SP8/34 5.5 7.5 199 172 156 150 144 136 122 102 75 4SP8/44 7.5 10 258 222 202 194 187 176 158 132 97 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SPm8/5-0.75 45×10×10.5 4.75 44×11×11.5 7.6 86x11x11.5 14.8 4SPm8/7-1.1 54x10x10.5 5.7 47×11×11.5 8.82 100×11×11.5 17.2 4SPm8/10-1.5 67×10×10.5 7.34 49x11x11.5 10.1 117×11×11.5 21.66 4SPm8/13-2.2 79x10x10.5 8.72 54×11×11.5 11.5 138x11x12.5| 27.26 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SP8/5-0.75 45*10*10.5 4.75 49*11*11.5 10.1 86*11*11.5 14.8 4SP8/7-1.1 54*10*10.5 5.7 54*11*11.5 11.5 100*11*11.5 17.2 4SP8/10-1.5 67*10*10.5 7.34 58*11*11.5 14.32 117*11*11.5 21.66 4SP8/13-2.2 79*10*10.5 8.72 62*11*12.5 18.54 133*11*12.5 26.26
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68
WARRANTY:1 YEAR
● (According to our general sales conditions)
