6SR46
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 6SR46
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to70 m³/h (1169L/min)
● Head: up to 185m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:3HP(2.2kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-iron Inlet Cast-iron Strainer AISI 304SS/201SS Diffuser PC Impeller PPO Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

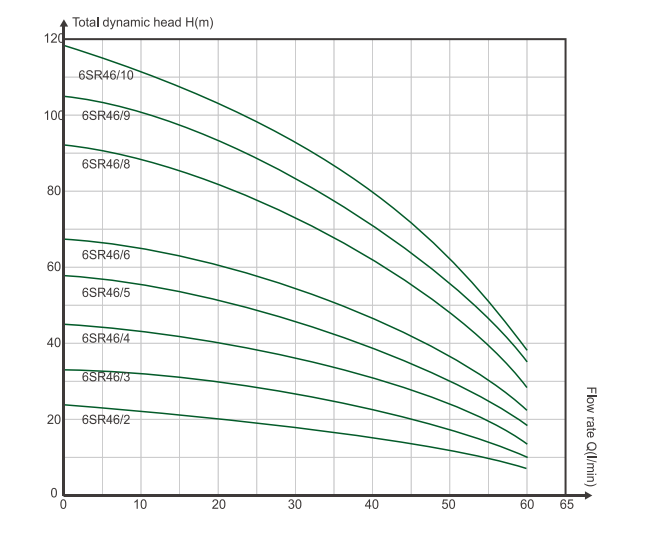

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 10 20 30 40 50 60 l/ min 0 167 333 500 667 833 1000 6SR46/2 3 4 3° H(m) 23 22 20 18 16 12 7 6SR46/3 4 5.5 3° 34 32 30 27 23 17 10 6SR46/4 5.5 7.5 3° 45 43 40 36 31 23 14 6SR46/5 7.5 10 3° 58 55 50 45 39 30 18 6SR46/6 9.2 12.5 3° 69 67 61 55 47 37 21 6SR46/8 11 15 3° 92 87 81 72 61 46 28 6SR46/9 13 18 3° 106 102 95 85 71 57 35 6SR46/10 15 20 3° 118 113 105 94 79 63 39 PACKAGING INFORMATION
Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)6SR46/2-3.0 51×14×14 16.3 6SR46/3-4.0 62×14×14 18.6 6SR46/4-5.5 74×14×14 20.9 6SR46/5-7.5 85×14×14 22.7 6SR46/6-9.2 96×14×14 24.9 6SR46/8-11 118x14x14 28.5 6SR46/9-13 130x14x14 30.8 6SR46/10-15 141x14x14 32.3
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to70 m³/h (1169L/min)
● Head: up to 185m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:3HP(2.2kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
