4SFm8
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SFm8
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 507m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-Cu Inlet Cast-Cu Strainer AISI 304SS/201SS Diffuser PC Impeller POM Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

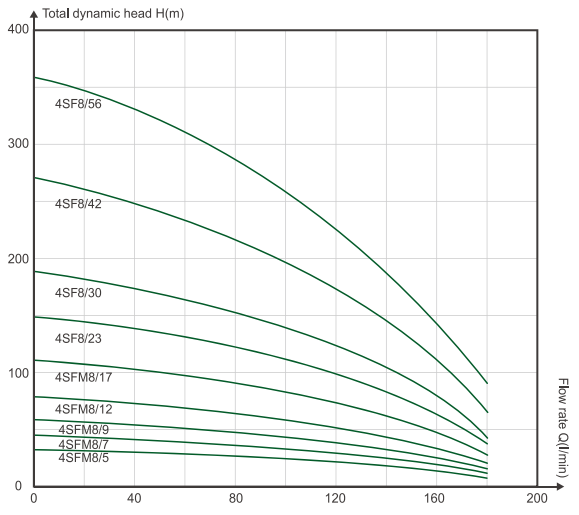

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240V3~
380V-415VKW HP DN Q m³/h 0 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8 l/ min 0 20 40 60 80 100 120 140 160 180 4SFm8/5 4SF8/5 0.55 0.75 2" H(m) 33 32 30 27 26 24 22 18 14 8 4SFm8/7 4SF8/7 0.75 1 2" 44 43 40 38 36 33 30 24 19 11 4SFm8/9 4SF8/9 1.1 1.5 2" 58 56 52 49 46 43 38 32 24 15 4SFm8/12 4SF8/12 1.5 2 2" 78 76 71 66 62 58 51 43 32 20 4SFm8/17 4SF8/17 2.2 3 2" 110 107 99 92 87 81 73 61 46 27 4SF8/23 3 4 2" 148 143 134 124 118 110 99 83 62 37 4SF8/30 4 5.5 2" 188 183 172 160 150 140 128 103 77 42 4SF8/42 5.5 7.5 2" 270 262 248 228 212 196 175 144 108 65 4SF8/56 7.5 10 2" 358 351 327 305 280 260 228 192 142 90 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SFm8/5-0.55 41×10×10.5 3.7 35x11x11.5 8.8 74x11x11.5 12.5 4SFm8/7-0.75 48×10×10.5 4.2 37×11×11.5 9.6 84×11×11.5 13.8 4SFm8/9-1.1 55×10×10.5 4.9 43×11×11.5 11.7 96×11×11.5 16.7 4SFm8/12-1.5 70x10x10.5 6.0 48×11×11.5 14.1 116×11×11.5 20.2 4SFm8/17-2.2 88x10x10.5 7.6 57×11×11.5 18.3 143×11×11.5 26.4 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SF8/5-0.55 41x10x10.5 3.7 40×11×11.5 8.9 79x11x11.5 12.6 4SF8/7-0.75 48×10×10.5 4.2 42×11×11.5 9.8 88x11x11.5 14.0 4SF8/9-1.1 55x10x10.5 4.9 47×11×11.5 11.8 101x11x11.5 16.8 4SF8/12-1.5 70×10×10.5 6.0 51×11×11.5 14.2 119×11×11.5 20.3 4SF8/17-2.2 88×10×10.5 7.6 55×11×11.5 15.9 141×11×11.5 23.7 4SF8/23-3 113x10x10.5 9.7 62×11×11.5 20.7 4SF8/30-4 142x10x10.5 12.3 70×11×11.5 24.3 4SF8/42-5.5 197×10×10.5 19.9 78×11×11.5 30.1 4SF8/56-7.5 255×10×10.5 26 85×11×11.5 34.2
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 507m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
