4QJm4
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-

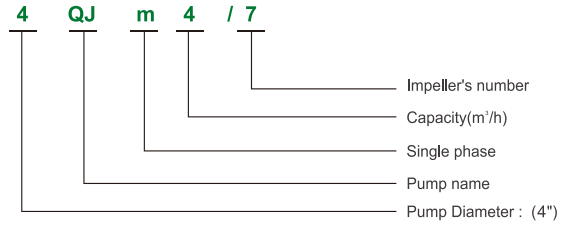

- Commodity name: 4QJm4
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 21.6m³/h (360L/min)
● Head: up to 188m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-- 3HP(2.2kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation:B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-iron Inlet Cast-iron Strainer AISI 304SS/201SS Diffuser ABS Impeller ABS Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

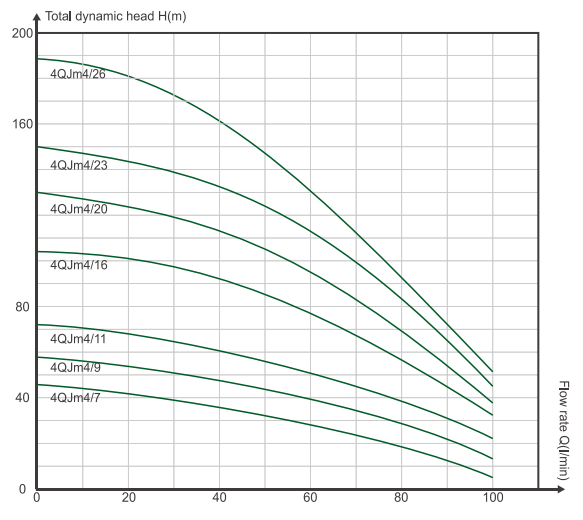

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240VKW HP DN Q m³/h 0 0.6 1.2 1.8 2.4 3.0 3,6 4.2 4.8 5.4 6.0 l/ min 0 10 20 30 40 50 60 70 80 90 100 4QJm4/7 0.37 0.5 1.5" H(m) 46 44 43 38 34 31 28 22 13 11 5 4QJm4/9 0.55 0.75 1.5" 59 57 56 51 46 44 40 34 27 23 13 4QJm4/11 0.75 1 1.5" 72 70 68 66 60 58 52 46 39 33 22 4QJm4/16 1.1 1.5 1.5" 104 101 99 97 87 84 76 67 56 48 31 4QJm4/20 1.5 2 1.5" 130 126 124 121 109 105 95 84 70 60 39 4QJm4/23 1.8 2.5 1.5" 150 145 143 139 126 121 109 96 81 69 45 4QJm4/26 2.2 3 1.5" 188 184 181 172 163 142 131 112 90 72 51 PACKAGING INFORMATION
Model
single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4QJm4/7-0.37 78x11x11.5 11.55 4QJm4/9-0.55 86x11x11.5 13.25 4QJm4/11-0.75 94×11×11.5 14.38 4QJm4/16-1.1 111×11×11.5 17.66 4QJm4/20-1.5 126x11x11.5 20.46 4QJm4/23-1.8 136x11x11.5 22.05 4QJm4/26-2.2 169x11x12.5 25.55
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 21.6m³/h (360L/min)
● Head: up to 188m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-- 3HP(2.2kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation:B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
