2SDm1
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-

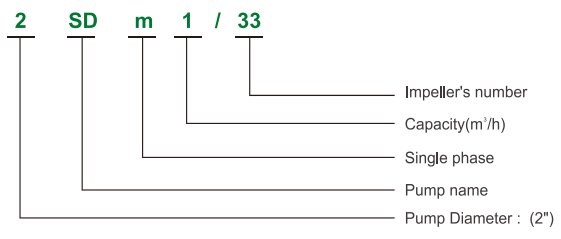

- Commodity name: 2SDm1
APPLICATIONS
● Water supply from wells or reservoirs
● livestock watering, dewatering
● Industrial cooling and processing
● Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 1.5m³/h (25L/min)
● Head: up to 47m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Oil filled rewindable motor
● Maximum immersion depth:80m
● Horse Power range:0.33HP(0.25kw) -- 0.5HP(0.37kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
(According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI304SS/201SS Outlet Cast-Cu Inlet Cast-Cu Strainer AISI304SS/201SS Diffuser PC Impeller POM Pump shaft AISI304SS/201SS Shaft coupling AISI304SS/201SS Motorcasing AISI304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/ Cast-iron Motor shaft AISI304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

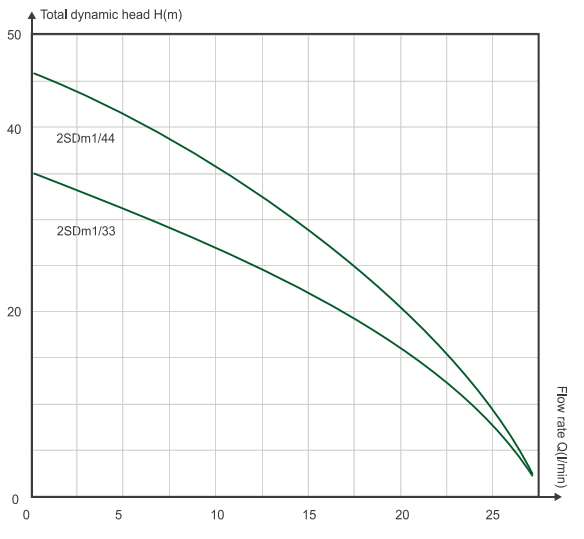

PERFORMANCE TABLE
Type Motor power Outelt Delivery N=2850r/ min 1~
220V-240VKW HP DN Q m³/h 0 0.5 0.8 1 1.2 1.5 l/ min 0 8 13 17 20 25 2SDm1/33 0.25 0.33 3/4" H(m) 34 28 24 21 17 3 2SDm1/44 0.37 0.5 3/4" 47 36 31 27 23 5 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)2SDm1/33-0.25 109x6x6 3 46x6x7.5 4.5 2SDm1/44-0.37 142x6x6 4 51x6x7.5 5
APPLICATIONS
● Water supply from wells or reservoirs
● livestock watering, dewatering
● Industrial cooling and processing
● Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 1.5m³/h (25L/min)
● Head: up to 47m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Oil filled rewindable motor
● Maximum immersion depth:80m
● Horse Power range:0.33HP(0.25kw) -- 0.5HP(0.37kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
(According to our general sales conditions)
