4SFm2
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SFm2
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 507m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-Cu Inlet Cast-Cu Strainer AISI 304SS/201SS Diffuser PC Impeller POM Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

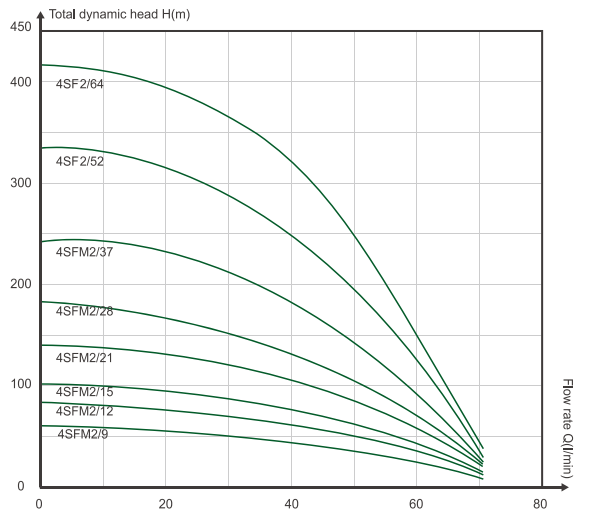

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240V3~
380-415VKW HP DN Q m³/h 0 0.6 1.2 1.8 2.4 3.0 3.3 3.6 4.2 l/ min 0 10 20 30 40 50 55 60 70 4SFm2/9 4SF2/9 0.37 0.5 1.25" H(m) 60 58 55 51 43 33 28 23 8 4SFm2/12 4SF2/12 0.55 0.75 1.25" 83 82 80 72 62 50 42 34 12 4SFm2/15 4SF2/15 0.75 1 1.25" 101 100 95 88 76 59 50 39 15 4SFm2/21 4SF2/21 1.1 1.5 1.25" 141 138 136 122 106 82 71 56 21 4SFm2/28 4SF2/28 1.5 2 1.25" 184 182 179 162 135 106 89 78 24 4SFm2/37 4SF2/37 2.2 3 1.25" 245 240 235 217 183 144 120 85 28 4SF2/52 3 4 1.25" 334 330 323 290 245 190 160 118 30 4SF2/64 4 5.5 1.25" 412 406 395 360 315 240 190 136 35 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SFm2/9-0.37 44x10x10.5 4.1 33×11×11.5 7.4 76×11×11.5 11.4 4SFm2/12-0.55 55×10×10.5 5.0 35×11×11.5 8.8 89×11×11.5 13.8 4SFm2/15-0.75 63×10×10.5 5.6 37×11×11.5 9.6 98×11×11.5 15.2 4SFm2/21-1.1 77×10×10.5 7.0 43×11×11.5 11.7 118x11x11.5 18.8 4SFm2/28-1.5 98×10×10.5 9.1 48×11×11.5 14.1 145×11×11.5 23.2 4SFm2/37-2.2 123x10x10.5 11.4 57×11×11.5 18.3 178x11x11.5 31.4 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SF2/9-0.37 44×10×10.5 4.1 37×11×11.5 7.6 80×11×11.5 11.6 4SF2/12-0.55 55×10×10.5 5.0 40×11×11.5 8.9 94×11×11.5 13.9 4SF2/15-0.75 63×10×10.5 5.6 42×11×11.5 9.8 103×11×11.5 15.4 4SF2/21-1.1 77×10×10.5 7.0 47×11×11.5 11.8 123×11×11.5 18.9 4SF2/28-1.5 98×10×10.5 9.1 51×11×11.5 14.2 148×11×11.5 23.3 4SF2/37-2.2 123×10×10.5 11.4 55×11×11.5 15.9 176×11×11.5 29.0 4SF2/52-3 172×10×10.5 18.9 62x11x11.5 20.7 4SF2/64-4 208×10×10.5 22.5 70×11×11.5 24.3
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 507m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
