4SFm12
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SFm12
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 507m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-Cu Inlet Cast-Cu Strainer AISI 304SS/201SS Diffuser PC Impeller POM Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

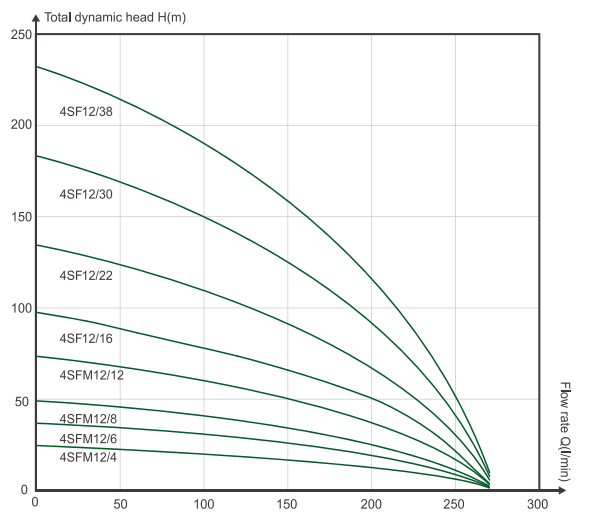

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~ 1~ KW HP DN Q m³/h 0 1.8 3.6 5.4 7.2 9 10.8 12.6 14.4 16.4 220V-240V 380V-415V l/ min 0 30 60 90 120 150 180 210 240 270 4SFm12/4 4SF12/4 0.75 1 2" H(m) 24 23 22 20 18 16 14 12 7 1 4SFm12/6 4SF12/6 1.1 1.5 2" 37 35 32 30 28 25 21 17 11 2 4SFm12/8 4SF12/8 1.5 2 2" 49 46 43 40 37 33 29 23 15 2 4SFm12/12 4SF12/12 2.2 3 2" 73 70 65 60 55 49 43 35 22 3 4SF12/16 3 4 2" 98 93 86 80 74 66 57 46 29 4 4SF12/22 4 5.5 2" 134 128 119 110 101 91 79 64 40 6 4SF12/30 5.5 7.5 2" 183 174 162 150 138 124 107 87 55 8 4SF12/38 7.5 10 2" 232 220 205 190 175 157 136 110 70 10 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SFm12/4-0.75 41×10×10.5 3.7 37×11×11.5 9.6 85×11×11.5 13.6 4SFm12/6-1.1 48×10×10.5 4.2 43x11x11.5 11.7 101×11×11.5 16.7 4SFm12/8-1.5 55×10×10.5 4.9 48×11×11.5 14.1 121×11×11.5 20.0 4SFm12/12-2.2 70×10×10.5 6.0 57×11×11.5 18.3 152×11×11.5 26.5 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SF12/4-0.75 49x10x10.5 4.2 42×11×11.5 9.8 89x11x11.5 13.8 4SF12/6-1.1 60x10x10.5 5.2 47×11×11.5 11.8 106×11×11.5 16.8 4SF12/8-1.5 74×10×10.5 6.2 51×11×11.5 14.2 124×11×11.5 20.2 4SF12/12-2.2 96×10×10.5 8.2 55×11×11.5 18.3 150×11×11.5 23.9 4SF12/16-3 122x10x10.5 10.1 62×11×11.5 20.7 4SF12/22-4 155×10×10.5 13 70×11×11.5 24.3 4SF12/30-5.5 206×10×10.5 19 78x11x11.5 30.1 4SF12/38-7.5 254×10×10.5 23.6 85x11x11.5 34.2
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 507m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
