6SR25
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-

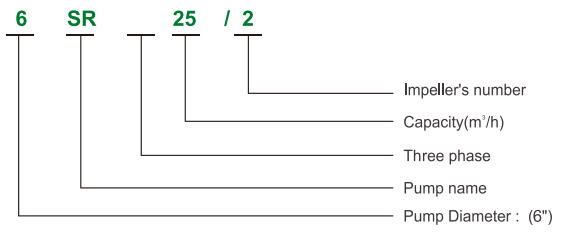

- Commodity name: 6SR25
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to70 m³/h (1169L/min)
● Head: up to 185m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:3HP(2.2kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet Cast-iron Inlet Cast-iron Strainer AISI 304SS/201SS Diffuser PC Impeller PPO Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

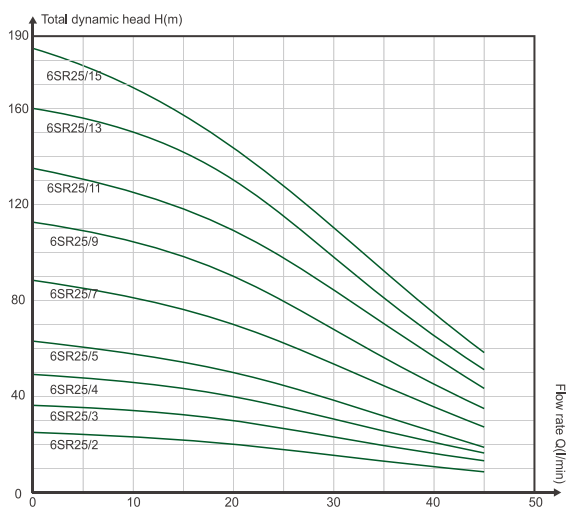

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 10 15 20 25 30 35 40 45 l/ min 0 165 250 330 415 500 580 665 750 6SR25/2 2.2 3 3" H(m) 25 22 21 20 17 15 13 10 8 6SR25/3 3 4 3" 37 34 31 30 26 22 19 15 12 6SR25/4 4 5.5 3° 49 45 42 40 35 30 26 20 16 6SR25/5 5.5 7.5 3" 62 56 52 50 43 37 32 25 19 6SR25/7 7.5 10 3° 89 79 73 70 61 52 45 35 27 6SR25/9 9.2 12.5 3" 113 101 93 90 78 67 58 45 35 6SR25/11 11 15 3" 135 124 114 110 95 81 71 55 43 6SR25/13 13 18 3° 160 146 135 130 113 96 84 65 51 6SR25/15 15 20 3" 185 169 156 150 130 111 97 75 58 PACKAGING INFORMATION
Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)6SR25/2-2.2 45×14×14 13.98 6SR25/3-3.0 53×14×14 15.52 6SR25/4-4.0 62×14×14 16.92 6SR25/5-5.5 69×14×14 18.35 6SR25/7-5.5 85×14×14 21.8 6SR25/9-5.5 101×14×14 24.98 6SR25/11-11 116×14×14 27.8 6SR25/13-13 132×14×14 30.4 6SR25/15-15 148×14×14 33.48
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to70 m³/h (1169L/min)
● Head: up to 185m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:3HP(2.2kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
