6SP60
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-

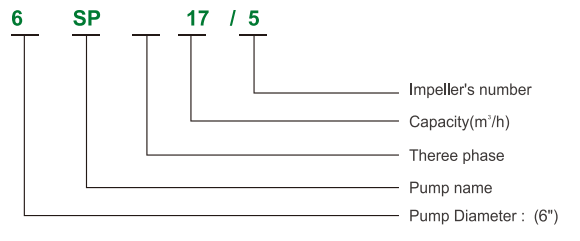

- Commodity name: 6SP60
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 80m³/h (117L/min)
● Head: up to 270m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range: 4HP(3kw)-- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS Shaft coupling AISI 304SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

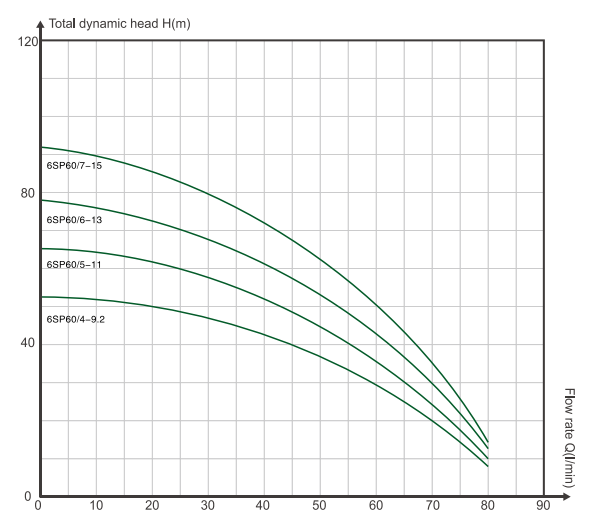

PERFORMANCE TABLE
Type Moto r power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 10 20 30 40 50 60 70 80 l/ min 0 165 300 500 665 830 1000 1165 1333 6SP60/4 9.2 12.5 3° H(m) 52 51 50 45 39 34 29 20 8 6SP60/5 11 15 3° 65 64 63 57 49 43 36 25 10 6SP60/6 13 18 3" 78 76 75 68 58 51 43 30 12 6SP60/7 15 20 3" 91 89 88 79 68 60 50 35 14 PACKAGING INFORMATION
Model
Three - phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)6SP60/4-9.2 75×15×15 15.54 6SP60/5-11 86x15x15 18.32 6SP60/6-13 97×15×15 21.11 6SP60/7-15 109×15×15 23.64
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 80m³/h (117L/min)
● Head: up to 270m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range: 4HP(3kw)-- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
