QG1.8
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: QG1.8
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting, Etc
OPERATING CONDITONS
● Flow: up to 2.4m³/h (45L/min)
● Head: up to 185m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.38HP(0.28kw)-1.5HP(1.1kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation: B
● Degree of Protection:IP 68 -
COMPONENTS MATERIAL Outlet AISI 201SS Strainer AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Seal lubricant oil 10# White Oil -

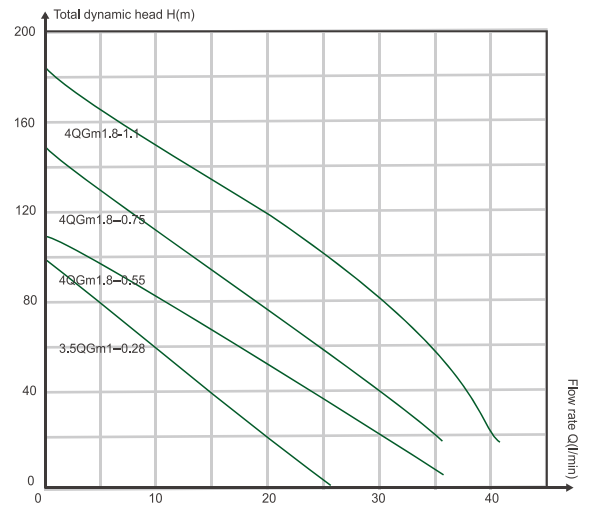

PERFORMANCE TABLE
Type Motor power Outlet Delivery N 2850r/ min 1~
220V-240VKW HP DN Q m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 I/ min 0 5 10 15 20 25 30 35 40 3.5QGm1-0.28 0.28 0.38 1° H(m) 100 80 62 40 21 2 4QGm1.8-0.55 0.55 0.75 1° 110 100 84 70 52 38 23 5 4QGm1.8-0.75 0.75 1 1° 150 130 110 95 73 55 40 20 4QGm1.8-1.1 1.1 1.5 1° 185 165 150 135 120 110 80 55 20 PACKAGING INFORMATION
ModelSingle-phase Pump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)3.5QGm1-0.28 61x9x10 8.5 4QGm1.8-0.55 63x11x11.5 10.55 4QGm1.8-0.75 65x11x11.5 11 4QGm1.8-1.1 70x11x11.5 12.8
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting, Etc
OPERATING CONDITONS
● Flow: up to 2.4m³/h (45L/min)
● Head: up to 185m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.38HP(0.28kw)-1.5HP(1.1kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● Class of Insulation: B
● Degree of Protection:IP 68
