3.5SD(QJ)m2
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-

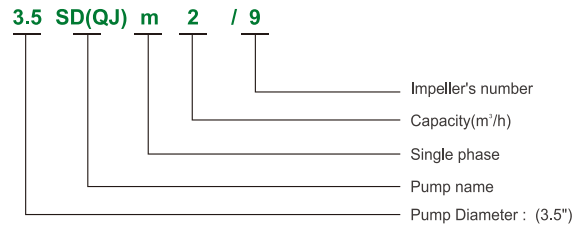

- Commodity name: 3.5SD(QJ)m2
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 6m³/h (100L/min)
● Head: up to 157m
● Maximum water temperature:35℃
● Maximum allowable amount of sand: 2.0%(SD series)
MOTOR AND PUMP
● Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--2HP(1.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection: IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-Cu Cast-iron Inlet Cast-Cu Cast-iron Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

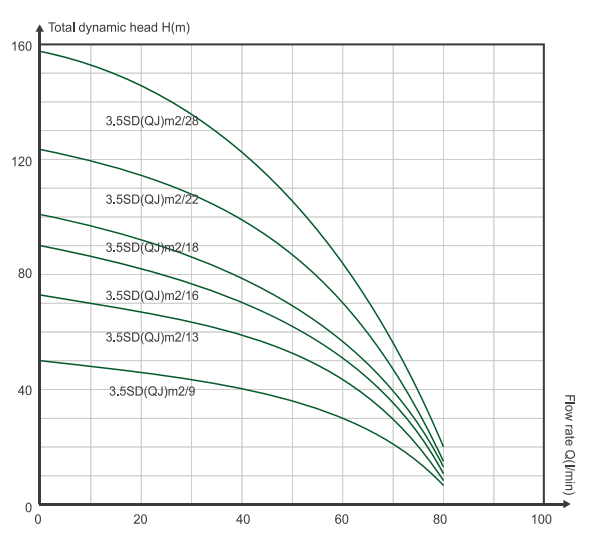

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240V3~
380V-415VKW HP DN Q m³/h 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 l/ min 0 10 20 30 40 50 60 70 80 3.5SD(QJ)m2/9 3.5SD(QJ)2/9 0.37 0.5 1.5" H(m) 50 49 46 45 40 34 31 20 6 3.5SD(QJ)m2/13 3.5SD(QJ)2/13 0.55 0.75 1.5" 73 70 66 64 57 49 44 29 9 3.5SD(QJ)m2/16 3.5SD(QJ)2/16 0.75 1 1.5" 90 86 82 79 70 61 54 35 11 3.5SD(QJ)m2/18 3.5SD(QJ)2/18 0.95 1.3 1.5" 101 97 92 89 79 68 61 40 13 3.5SD(QJ)m2/22 3.5SD(QJ)2/22 1.1 1.5 1.5" 123 119 112 109 97 83 75 48 15 3.5SD(QJ)m2/28 3.5SD(QJ)t2/28 1.5 2 1.5" 157 151 143 139 123 106 95 62 20 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)3.5QJm2/9-0.37 90*9*10 12.7 3.5QJm2/13-0.55 108*9*10 14.65 3.5QJm2/16-0.75 117*9*10 15.63 3.5QJm2/18-0.95 125*9*10 17 3.5QJm2/22-1.1 144*9*10 20 3.5QJm2/28-1.5 161*9*10 23.15
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 6m³/h (100L/min)
● Head: up to 157m
● Maximum water temperature:35℃
● Maximum allowable amount of sand: 2.0%(SD series)
MOTOR AND PUMP
● Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--2HP(1.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation:B
● Degree of Protection: IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
