4SPm2
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SPm2
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

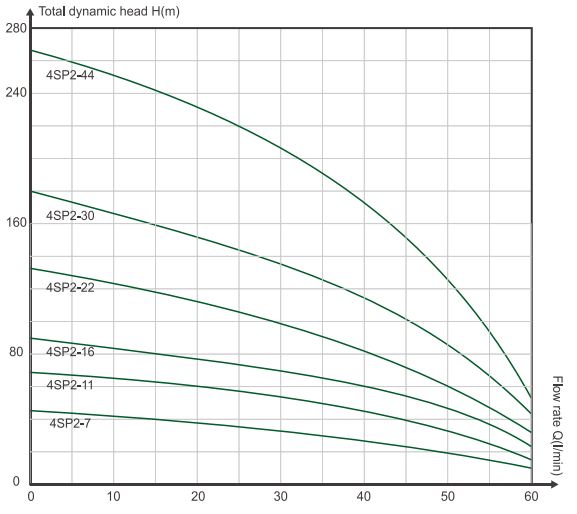

PERFORMANCE TABLE
Type Moto r power Delivery N≈2850r/ min 1~
220V-240V3~
380V-415VKW HP Q m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3 3.3 3.6 l/ min 0 5 10 15 20 25 30 35 40 45 50 35 60 4SPm2/7 4SP2/7 0.37 0.5 H(m) 42 41 38 36 35 33 32 30 27 23 21 15 10 4SPm2/11 4SP2/11 0.55 0.75 66 65 59 57 55 52 51 47 42 36 34 24 15 4SPm2/16 4SP2/16 0.75 1 96 94 86 83 80 76 74 69 61 53 50 35 22 4SPm2/22 4SP2/22 1.1 1.5 132 130 121 117 110 105 101 98 84 75 70 48 31 4SPm2/30 4SP2/30 1.5 2 180 177 165 159 150 143 138 134 114 102 96 66 42 4SPm2/44 4SP2/44 2.2 3 264 260 242 233 220 209 202 196 167 150 141 97 62 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SPm2/7-0.37 34x10x10.5 3.34 44×11×11.5 7.6 70×11×11.5 10.94 4SPm2/11-0.55 42×10×10.5 4.24 47×11×11.5 8.82 81×11×11.5 13.06 4SPm2/16-0.75 53×10×10.5 5.5 49×11×11.5 10.1 94×11×11.5 15.6 4SPm2/22-1.1 65x10x10.5 6.8 54×11×11.5 11.5 111x11x11.5 18.3 4SPm2/30-1.5 82x10x10.5 8.66 58×11×11.5 14.32 132×11×11.5 22.98 4SPm2/44-2.2 111×10×10.5 12.1 67×11×12.5 18.54 170x11x12.5 30.64 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Who le pump
weight(kg)4SP2/7-0.37 34×10×10.5 3.34 44×11×11.5 7.6 70×11×11.5 10.94 4SP2/11-0.55 42×10×10.5 4.24 47×11×11.5 8.82 81×11×11.5 13.06 4SP2/16-0.75 53x10x10.5 5.5 49×11×11.5 10.1 94×11×11.5 15.6 4SP2/22-1.1 65×10×10.5 6.8 54×11×11.5 11.5 111×11×11.5 18.3 4SP2/30-1.5 82×10×10.5 8.66 58×11×11.5 14.32 132×11×11.5 22.98 4SP2/44-2.2 111×10×10.5 12.1 62×11×12.5 18.54 165×11×12.5 29.64
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68
WARRANTY:1 YEAR
● (According to our general sales conditions)
