4SPm3
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SPm3
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

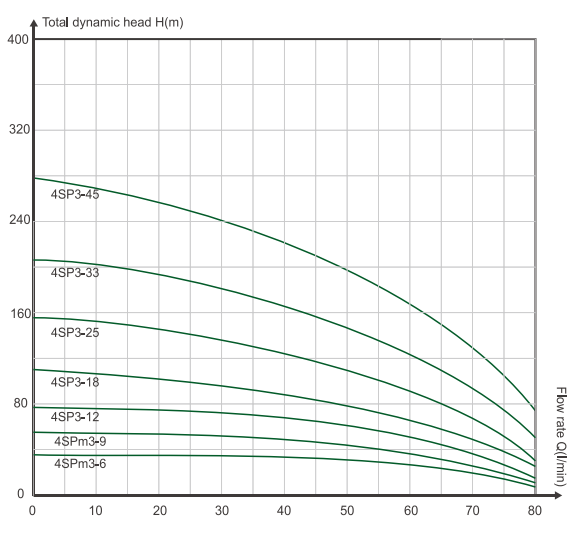

PERFORMANCE TABLE
Type Motor power Delivery N≈2850r/ min 1~
220V-240V3~
380V-415VKW HP Q m³/h 0 0.6 1.2 1.8 2,4 3.0 3.6 4.2 4.8 l/ min 0 10 20 30 40 50 60 70 80 4SPm3/6 0.37 0.5 H(m) 37 35 33 31 29 26 22 17 9 4SPm3/9 0.55 0.75 56 53 50 47 44 40 33 25 14 4SPm3/12 4SP3/12 0.75 1 74 70 66 62 59 53 45 33 18 4SPm3/18 4SP3/18 1.1 1.5 112 106 99 93 88 79 67 50 28 4SPm3/25 4SP3/25 1.5 2 155 147 138 130 123 110 93 70 39 4SPm3/33 4SP3/33 2.2 3 205 194 182 171 162 145 122 92 51 4SP3/45 3 4 279 264 248 234 221 198 167 125 69 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SPm3/6-0.37 32×10×10.5 3.25 44×11×11.5 7.6 68×11×11.5 10.58 4SPm3/9-0.55 38×10×10.5 3.86 47×11×11.5 8.82 77×11×11.5 12.82 4SPm3/12-0.75 44x10x10.5 4.46 49×11×11.5 10.1 85×11×11.5 14.42 4SPm3/18-1.1 57×10×10.5 6.08 54×11×11.5 11.5 103×11×11.5 17.48 4SPm3/25-1.5 72×10×10.5 7.6 58×11×11.5 14.32 122x11x11.5 20.71 4SPm3/33-2.2 89×10×10.5 9.25 67×11×12.5 18.54 148x11x12.5 25.12 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SP3/12-0.75 32×10×10.5 3.25 49×11×11.5 10.1 85×11×11.5 14.42 4SP3/18-1.1 38×10×10.5 3.86 54×11×11.5 11.5 103×11×11.5 17.48 4SP3/25-1.5 44×10×10.5 4.46 58x11x11.5 14.32 122×11×11.5 20.71 4SP3/33-2.2 57×10×10.5 6.08 62×11×12.5 18.54 143x11x12.5 24.12
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68
WARRANTY:1 YEAR
● (According to our general sales conditions)
