5QJ(SS)8
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 5QJ(SS)8
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 481m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:2HP(1.5kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-iron AISI 304SS Inlet Cast-iron AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

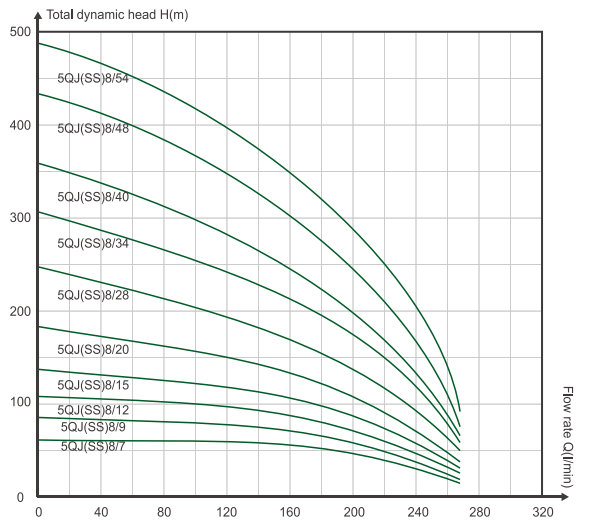

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 3 6 9 12 15 16 l/ min 0 50 100 150 200 250 267 5QJ(SS)8/7 1.5 2 2" H(m) 62 59 54 47 34 22 13 5QJ(SS)8/9 2.2 3 2" 80 76 70 60 44 28 16 5QJ(SS)8/12 3 4 2" 107 101 93 80 58 37 22 5QJ(SS)8/15 4 5.5 2" 134 127 116 101 73 47 27 5QJ(SS)8/20 5.5 7.5 2" 178 169 155 134 97 62 36 5QJ(SS)8/28 7.5 10 2" 249 237 216 188 136 87 50 5QJ(SS)8/34 9.2 12.5 2" 303 287 263 228 165 105 61 5QJ(SS)8/40 11 15 2" 356 338 309 268 194 124 72 5QJ(SS)8/48 13 18 2° 428 406 371 322 233 149 86 5QJ(SS)8/54 15 20 2" 481 456 417 362 262 167 97 PACKAGING INFORMATION
Model
Three-phasePump body
size(cm)Pump body weight(kg) Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)5QJ8/7-1.5 60×14×14 9.5 52×16×16 21 5QJ8/9-2.2 68×14×14 10 54×16×16 23.5 5QJ8/12-3.0 83×14×14 13.5 58×16×16 27 5QJ8/15-4.0 95x14x14 14 60×16×16 29 5QJ8/20-5.5 114x14x14 17 68×16×16 32.1 5QJ8/28-7.5 149x14x14 20 76×16×16 40.3 5QJ8/34-9.2 188×14×14 31.2 84×16×16 50.75 5QJ8/40-11 221x14x14 35.4 92.5x16x16 57 5QJ8/48-13 251×14×14 39.6 98×16×16 60.6 5QJ8/48-15 274x14x14 43 103×16×16 65.4 Model
Three-phasePump body
size(cm)Pump body weight(kg) Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)5SS8/7-1.5 55×14×14 8.8 52×16×16 21 5SS8/9-2.2 63×14×14 9.5 54×16×16 23.5 5SS8/12-3.0 79×14×14 11.4 58×16×16 27 5SS8/15-4.0 90×14×14 12.8 60×16×16 29 5SS8/20-5.5 109x14x14 14.9 68×16×16 32.1 5SS8/28-7.5 145x14x14 18.9 76×16×16 40.3 5SS8/34-9.2 188×14×14 31.2 84×16×16 50.75 5SS8/40-11 221x14x14 35.2 92.5x16x16 57 5SS8/48-13 251x14x14 39.6 98×16×16 60.6 5SS8/48-15 274x14x14 43 103x16x16 65.4
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 481m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:2HP(1.5kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68
WARRANTY:1 YEAR
● (According to our general sales conditions)
