5QJ(SS)12
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-

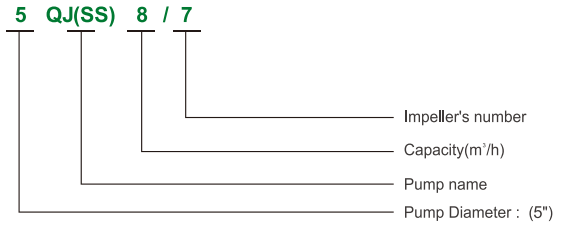

- Commodity name: 5QJ(SS)12
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 481m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:2HP(1.5kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-iron AISI 304SS Inlet Cast-iron AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

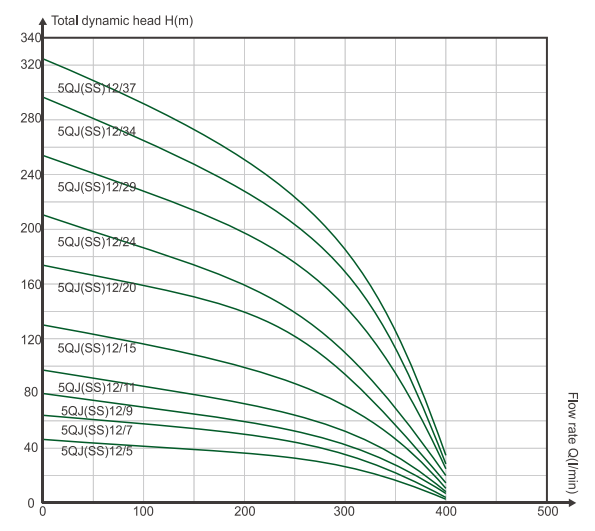

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 3 6 9 12 15 18 21 24 l/ min 0 50 100 150 200 250 300 350 400 5QJ(SS)12/5 1.5 2 2" H(m) 44 41 39 36 33 29 22 16 4 5QJ(SS)12/7 2.2 3 2" 62 57 55 50 47 41 31 24 5 5QJ(SS)12/9 3 4 2" 80 74 70 65 60 55 41 32 9 5QJ(SS)12/11 4 5.5 2° 96 87 86 79 73 65 48 35 7 5QJ(SS)12/15 5.5 7.5 2" 130 121 117 108 100 87 64 50 11 5QJ(SS)12/20 7.5 10 2" 174 162 156 144 134 121 90 70 16 5QJ(SS)12/24 9.2 12.5 2" 210 195 187 173 160 145 105 83 20 5QJ(SS)12/29 11 15 2" 253 236 226 209 194 171 126 90 24 5QJ(SS)12/34 13 18 2° 297 276 265 245 227 205 149 115 28 5QJ(SS)12/37 15 20 2° 322 301 289 266 247 224 168 130 30 PACKAGING INFORMATION
Model
Three-phasePump body
size(cm)Pump body weight(kg) Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)5QJ12/5-1.5 56×14×14 9 52×16×16 21 5QJ12/7-2.2 65×14×14 9.5 54×16×16 23.5 5QJ12/9-3.0 74×14×14 12.5 58×16×16 27 5QJ12/11-4.0 87x14x14 13.5 60×16×16 29 5QJ12/15-5.5 105×14×14 15.5 68×16×16 32.1 5QJ12/20-7.5 132×14×14 18.5 76×16×16 40.3 5QJ12/24-9.2 146×14×14 23 84×16×16 50.75 5QJ12/29-11 169×14×14 29.5 92.5x16x16 57 5QJ12/34-13 212x14x14 33.6 98×16×16 60.6 5QJ12/37-15 226x14x14 35.8 103x16x16 65.4 Model
Three-phasePump body
size(cm)Pump body weight(kg) Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)5SS12/5-1.5 51×14×14 8 52×16×16 21 5SS12/7-2.2 60×14×14 9.3 54×16×16 23.5 5SS12/9-3.0 69×14×14 10.7 58×16×16 27 5SS12/11-4.0 82×14×14 12.1 60×16×16 29 5SS12/15-5.5 101×4×14 14.2 68×16×16 32.1 5SS12/20-7.5 127×14×14 17.7 76×16×16 40.3 5SS12/24-9.2 146x14x14 23 84×16×16 50.75 5SS12/29-11 169x14x14 29.5 92.5x16x16 57 5SS12/34-13 212×14×14 33.6 98×16×16 60.6 5SS12/37-15 226×14×14 35.8 103x16x16 65.4
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 24m³/h (400L/min)
● Head: up to 481m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.25%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:2HP(1.5kw) -- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68
WARRANTY:1 YEAR
● (According to our general sales conditions)
