6SP17
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 6SP17
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 80m³/h (117L/min)
● Head: up to 270m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range: 4HP(3kw)-- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS Shaft coupling AISI 304SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

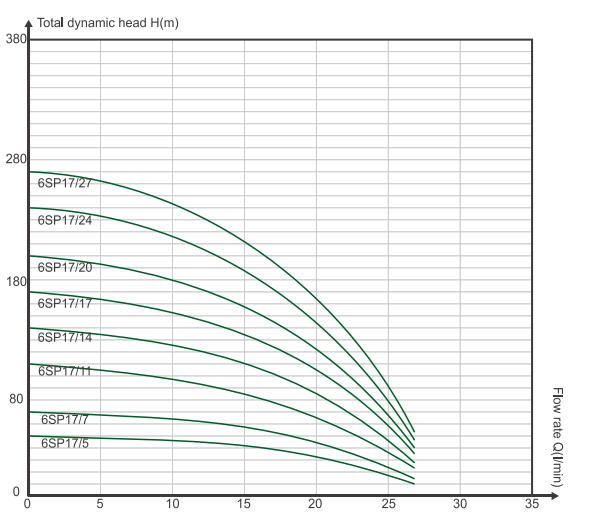

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 9 12 15 18 21 24 27 I/ min 0 150 200 250 300 350 400 450 6SP17/5 3 4 2"/3" H(m) 50 45 41 39 35 30 18 10 6SP17/7 4 5.5 2"/3" 70 63 57 55 49 42 26 14 6SP17/11 5.5 7.5 2"/3" 110 99 90 86 77 66 41 22 6SP17/14 7.5 10 2"/3" 140 126 115 109 98 84 52 28 6SP17/17 9.2 12.5 2"/3" 170 153 139 133 119 102 63 34 6SP17/20 11 15 2"/3" 200 180 154 156 140 120 74 40 6SP17/24 13 18 2"/3" 240 216 197 187 168 144 89 48 6SP17/27 15 20 2"/3" 270 243 221 211 189 162 100 54 PACKAGING INFORMATION
Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)6SP17/5-3.0 42x15x15 10 6SP17/7-4.0 61x15x15 13.14 6SP17/11-5.5 79×15×15 17.6 6SP17/14-7.5 92x15x15 22.1 6SP17/17-9.2 106x15x15 25.5 6SP17/20-11 120x15x15 28.9 6SP17/24-13 137x15x15 33.38 6SP17/27-15 151×15×15 36.42
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 80m³/h (117L/min)
● Head: up to 270m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range: 4HP(3kw)-- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
