6SP30
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 6SP30
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 80m³/h (117L/min)
● Head: up to 270m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range: 4HP(3kw)-- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS Shaft coupling AISI 304SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

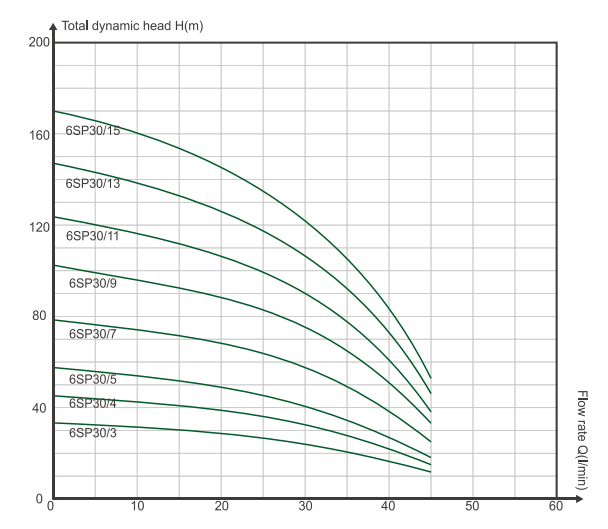

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 3~
380V-415VKW HP DN Q m³/h 0 10 15 20 25 30 35 40 45 l/ min 0 165 250 330 415 500 580 665 750 6SP30/3 3 4 2"/3" H(m) 34 32 31 29 27 25 21 17 11 6SP30/4 4 5.5 2"/3" 45 42 41 38 36 33 28 22 14 6SP30/5 5.5 7.5 2"/3" 57 53 51 48 45 41 35 28 18 6SP30/7 7.5 10 2"/3" 79 74 71 67 63 57 49 39 25 6SP30/9 9.2 12.5 2"/3" 102 95 92 86 81 74 63 50 32 6SP30/11 11 15 2"/3" 124 117 112 106 99 90 77 62 39 6SP30/13 13 18 2"/3" 147 138 133 125 117 107 91 73 46 6SP30/15 15 20 2"/3" 170 159 153 144 135 123 105 83 53 PACKAGING INFORMATION
Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)6SP30/3-3.0 63x15x15 10.62 6SP30/4-4.0 75x15x15 13.42 6SP30/5-5.5 86×15×15 16.22 6SP30/7-7.5 108x15x15 21.9 6SP30/9-9.2 131x15x15 28.1 6SP30/11-11 154x15x15 33.5 6SP30/13-13 176×15×15 38.1 6SP30/15-15 199x15x15 43.8
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 80m³/h (117L/min)
● Head: up to 270m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range: 4HP(3kw)-- 20HP(15kw)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
