4SD(SS)m3
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SD(SS)m3
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-Cu AISI 304SS Inlet Cast-Cu AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

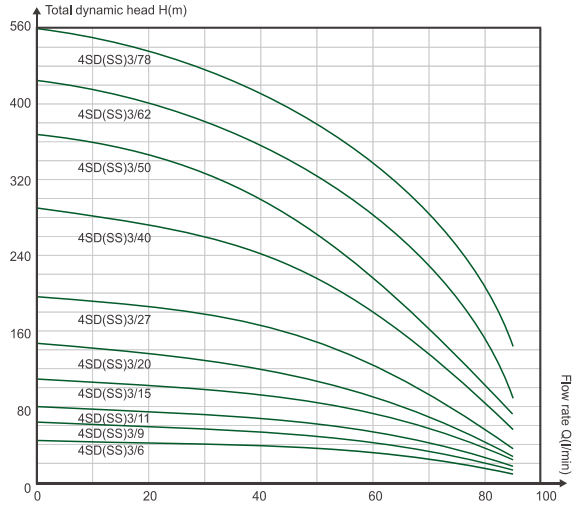

PERFORMANCE TABLE
Type Motor power Outlet Delivery N=2850r/ min 1~ 3~ KW HP DN Q m³/h 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 220V-240V 380V-415V l/ min 0 10 20 30 40 50 60 70 80 90 4SD(SS)m3/6 4SD(SS)3/6 0.37 0.5 1.25" H(m) 44 43 41 39 36 32 27 21 15 9 4SD(SS)m3/9 4SD(SS)3/9 0.55 0.75 1.25" 65 64 62 59 54 48 41 32 23 13 4SD(SS)m3/11 4SD(SS)3/11 0.75 1 1.25" 80 79 76 72 66 59 50 39 28 16 4SD(SS)m3/15 4SD(SS)3/15 1.1 1.5 1.25" 109 107 104 98 90 81 68 53 39 22 4SD(SS)m3/20 4SD(SS)3/20 1.5 2 1.25" 145 143 138 130 120 108 90 70 52 29 4SD(SS)m3/27 4SD(SS)3/27 2.2 3 1.25" 196 193 186 176 162 145 122 95 70 39 4SD(SS)3/40 3 4 1.25" 290 286 276 260 240 215 180 140 103 58 4SD(SS)3/50 4 5.5 1.25" 363 358 345 325 300 269 225 175 129 72 4SD(SS)3/62 5.5 7.5 1.25" 450 443 428 413 372 334 279 217 160 89 4SD(SS)3/78 7.5 10 1.25" 560 550 538 525 480 437 360 310 180 112 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)m3/6-0.37 39×10×10.5 3.2 44×11×11.5 7.6 75×11×11.5 10.82 4SD(SS)m3/9-0.55 47×10×10.5 4 47×11×11.5 8.82 86×11×11.5 12.74 4SD(SS)m3/11-0.75 52×10×10.5 4.26 49×11×11.5 10.1 94x11x11.5 15.38 4SD(SS)m3/15-1.1 67×10×10.5 6.2 54×11×11.5 11.5 114x11x11.5 18.74 4SD(SS)m3/20-1.5 80×10×10.5 7.44 58×11×11.5 14.32 131x11x11.5 22.04 4SD(SS)m3/27-2.2 103x10 10.5 9.08 67×11×12.5 18.54 162x11x12.5 26.38 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)3/6-0.37 39x10x10.5 3.2 44×11×11.5 7.6 75×11×11.5 10.82 4SD(SS)3/9-0.55 47×10×10.5 4 47×11×11.5 8.82 86×11×11.5 12.74 4SD(SS)3/11-0.75 52x10x10.5 4.26 49×11×11.5 10.1 94×11×11.5 15.38 4SD(SS)3/15-1.1 67×10×10.5 6.2 54×11×11.5 11.5 114x11x11.5 18.74 4SD(SS)3/20-1.5 80×10×10.5 7.44 58×11×11.5 14.32 131×11×11.5 22.04 4SD(SS)3/27-2.2 103x10x10.5 9.08 62x11x12.5 15.9 157x11x12.5 25.38
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
