4SD(SS)m4
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SD(SS)m4
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-Cu AISI 304SS Inlet Cast-Cu AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

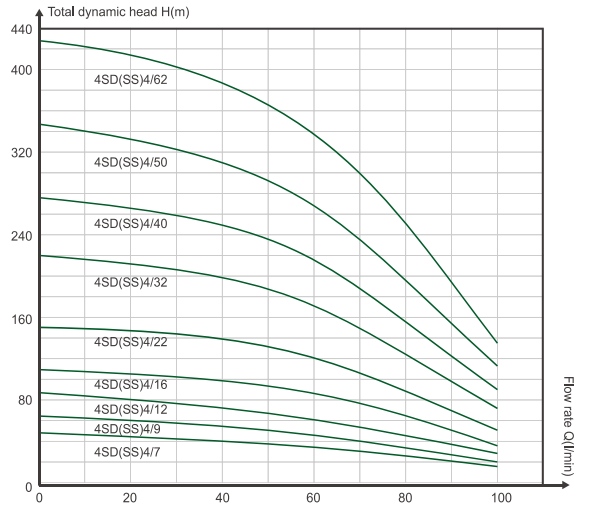

PERFORMANCE TABLE
Type Motor power Outlet Delivery N=2850r/ min 1~
220V-240V3-
380-415VKW HP DN Q m³/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 l/ min 0 10 20 30 40 50 60 70 80 90 100 4SD(SS)m4/7 4SD(SS)4/7 0.55 0.75 1.5" H(m) 48 48 46 45 43 41 38 33 27 22 16 4SD(SS)m4/9 4SD(SS)4/9 0.75 1 1.5" 62 61 59 58 55 53 49 43 35 28 20 4SD(SS)m4/12 4SD(SS)4/12 1.1 1.5 1.5" 83 81 79 78 73 71 65 57 46 37 27 4SD(SS)m4/16 4SD(SS)4/16 1.5 2 1.5" 110 109 105 104 98 94 86 76 62 49 36 4SD(SS)m4/22 4SD(SS)4/22 2.2 3 1.5" 151 149 144 143 134 130 119 104 85 68 49 4SD(SS)4/32 3 4 1.5" 220 217 210 208 195 189 173 151 124 99 71 4SD(SS)4/40 4 5.5 1.5" 275 272 262 260 244 236 216 189 154 124 89 4SD(SS)4/50 5.5 7.5 1.5" 344 340 328 325 305 295 270 237 193 155 111 4SD(SS)4/62 7.5 10 1.5" 427 421 406 402 378 366 335 293 239 192 138 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)m4/7-0.55 42×10×10.5 3.86 44×11×11.5 7.6 82×11×11.5 12.25 4SD(SS)m4/9-0.75 49×10×10.5 4.36 47×11×11.5 8.82 90×11×11.5 14.06 4SD(SS)m4/12-1.1 61×10×10.5 5.11 49×11×11.5 10.1 108x11x11.5 17.02 4SD(SS)m4/16-1.5 72×10×10.5 5.72 54×11×11.5 11.5 124x11x11.5 18.09 4SD(SS)m4/22-2.2 94x10x10.5 8.54 58×11×11.5 14.32 153x11x12.5 25.46 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)4/7-0.55 42x10x10.5 3.86 47×11×11.5 7.6 82×11×11.5 12.25 4SD(SS)4/9-0.75 49×10×10.5 4.36 49×11×11.5 8.82 90×11×11.5 14.06 4SD(SS)4/12-1.1 61×10×10.5 5.11 54×11×11.5 10.1 108x11x11.5 17.02 4SD(SS)4/16-1.5 72×10×10.5 5.72 58×11×11.5 11.5 124×11×11.5 18.09 4SD(SS)4/22-2.2 94×10×10.5 8.54 62×11×12.5 14.32 148x11x12.5 24.46
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
