4SD(SS)m6
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SD(SS)m6
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-Cu AISI 304SS Inlet Cast-Cu AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

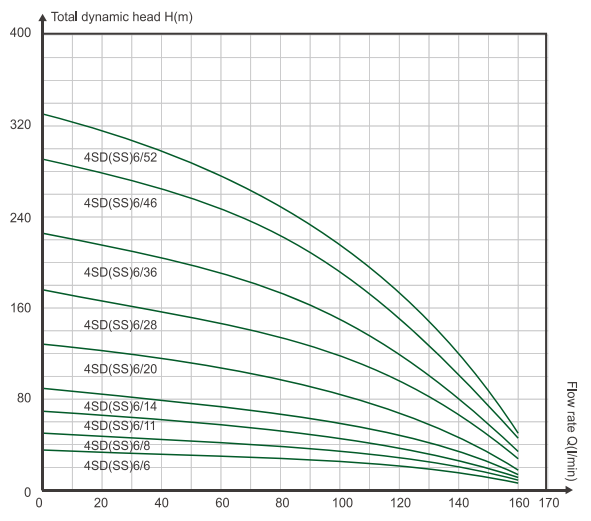

PERFORMANCE TABLE
Type Motor power Outlet Delivery N=2850r/ min 1~
220V-240V3803415V KW HP DN Q m³/h 0 1.2 2.4 3.6 4.8 6.0 7.2 8.4 9.6 l/ min 0 20 40 60 80 100 120 140 160 4SD(SS)m6/6 4SD(SS)6/6 0.55 0.75 1.5° H(m) 38 36 34 32 29 25 20 13 6 4SD(SS)m6/8 4SD(SS)6/8 0.75 1 1.5° 50 48 45 43 39 34 26 17 8 4SD(SS)m6/11 4SD(SS)6/11 1.1 1.5 1.5° 69 66 62 59 54 46 36 23 10 4SD(SS)m6/14 4SD(SS)6/14 1.5 2 1.5° 88 85 78 75 68 59 46 30 13 4SD(SS)m6/20 4SD(SS)6/20 2.2 3 1.5° 126 121 112 107 98 84 65 43 19 4SD(SS)6/28 3 4 1.5° 177 169 157 150 137 118 92 60 26 4SD(SS)6/36 4 5.5 1.5° 227 218 202 192 176 152 118 77 34 4SD(SS)6/46 5.5 7.5 1.5° 290 278 258 246 225 194 151 98 43 4SD(SS)6/52 7.5 10 1.5° 328 314 291 278 254 219 170 111 49 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)m6/6-0.55 44×10×10.5 3.89 44×11×11.5 7.6 83×11×11.5 13 4SD(SS)m6/8-0.75 50×10×10.5 4.42 47×11×11.5 8.82 91x11x11.5 15.04 4SD(SS)m6/11-1.1 63×10×10.5 5.74 49x11x11.5 10.1 110x11x11.5 18.1 4SD(SS)m6/14-1.5 72×10×10.5 6.6 54×11×11.5 11.5 123x11x11.5 21.26 4SD(SS)m6/20-2.2 95×10×10.5 8.2 58×11×11.5 14.32 154x11x12.5 26.94 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Who le pump
weight(kg)4SD(SS)6/6-0.55 44×10×10.5 3.89 47×11×11.5 7.6 83×11×11.5 13 4SD(SS)6/8-0.75 50×10×10.5 4.42 49×11×11.5 8.82 91×11×11.5 15.04 4SD(SS)6/11-1.1 63×10×10.5 5.74 54×11×11.5 10.1 110×11×11.5 18.1 4SD(SS)6/14-1.5 72×10×10.5 6.6 58×11×11.5 11.5 123x11x11.5 21.26 4SD(SS)6/20-2.2 95×10×10.5 8.2 62×11×12.5 14.32 149x11x12.5 25.84
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
