4SD(SS)m12
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SD(SS)m12
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-Cu AISI 304SS Inlet Cast-Cu AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

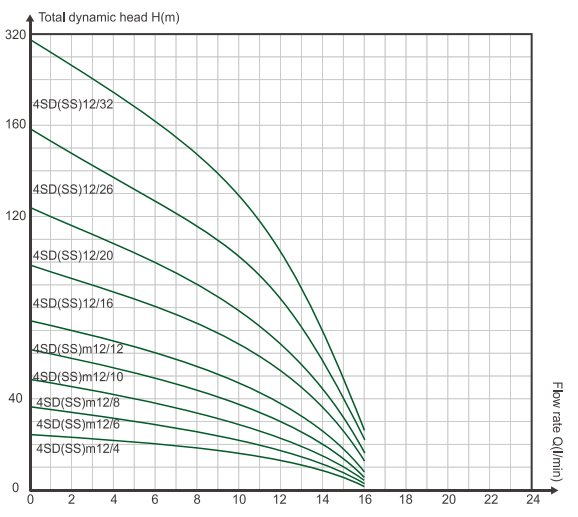

PERFORMANCE TABLE
Type Moto r power Outlet Delivery N≈2850 r/ min 1~
220V-240V3~
380V-415VKW HP DN Q m³/h 0 2 4 6 8 10 12 14 16 l/ min 0 33 67 100 133 167 200 233 267 4SD(SS)m12/4 4SD(SS)12/4 0.75 1 2" H(m) 24 23 21 19 16 14 10 6 2 4SD(SS)m12/6 4SD(SS)12/6 1.1 1.5 2" 36 34 32 29 26 22 17 11 3 4SD(SS)m12/8 4SD(SS)12/8 1.5 2 2" 49 46 43 40 36 30 24 16 5 4SD(SS)m12/10 4SD(SS)12/10 1.8 2.5 2" 61 58 53 49 44 38 30 20 6 4SD(SS)m12/12 4SD(SS)12/12 2.2 3 2" 73 70 65 58 53 45 36 24 8 4SD(SS)12/16 3 4 2" 98 93 86 80 71 62 51 36 13 4SD(SS)12/20 4 5.5 2" 123 116 108 100 89 78 64 45 16 4SD(SS)12/26 5.5 7.5 2" 159 151 140 130 115 101 83 59 21 4SD(SS)12/32 7.5 10 2" 196 186 172 160 142 124 102 72 26 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)m12-4-0.75 49×10×10.5 4.39 44×11×11.5 7.6 90x11x11.5 14.49 4SD(SS)m12/6-1.1 60×10×10.5 5.38 47×11×11.5 8.82 106x11x11.5 16.88 4SD(SS)m12/8-1.5 75×10×10.5 6.72 49×11×11.5 10.1 125×11×11.5 21.04 4SD(SS)m12/10-1.8 83×10×10.5 6.61 54×11×11.5 11.5 159x11x11.5 23.93 4SD(SS)m12/12-2.2 97×10×10.5 7.65 58x11x11.5 14.32 156x11x11.5 26.19 Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)12-4-0.75 49×10×10.5 4.39 44×11×11.5 7.6 90x11x11.5 14.49 4SD(SS)12/6-1.1 60×10×10.5 5.38 49×11×11.5 8.82 106x11x11.5 16.88 4SD(SS)12/8-1.5 75×10×10.5 6.72 54×11×11.5 10.1 125×11×11.5 21.04 4SD(SS)12/10-1.8 83×10×10.5 6.61 58×11×11.5 11.5 159x11x11.5 23.93 4SD(SS)12/12-2.2 97×10×10.5 7.65 62x11x11.5 14.32 156x11x11.5 25.19
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
