4SD(SS)m10
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SD(SS)m10
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL MATERIAL Pump casing AISI 304SS/201SS AISI 304SS/201SS Outlet Cast-Cu AISI 304SS Inlet Cast-Cu AISI 304SS Strainer AISI 304SS/201SS AISI 304SS/201SS Diffuser PC PC Impeller POM POM Pump shaft AISI 304SS/201SS AISI 304SS/201SS Shaft coupling AISI 304SS/201SS AISI 304SS/201SS Motor casing AISI 304SS/201SS AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Cast-Cu/Cast-iron Motor shaft AISI 304SS AISI 304SS Bearing NSK/C&U NSK/C&U Seal lubricant oil 10# White Oil 10# White Oil -

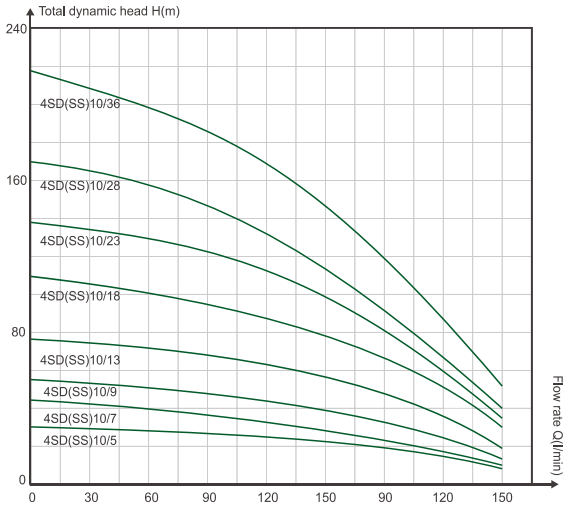

PERFORMANCE TABLE
Type Motor power Outlet Delivery N≈2850r/ min 1~
220V-240V3~
380-415VKW HP DN Q m³/h 0 1.80 3.06 5.40 7.20 9.0 10.80 12.60 14.40 l/ min 0 30 60 90 120 150 180 210 240 4SD(SS)m10/5 4SD(SS)10/5 0.75 1 2" H(m) 30 30 28 26 24 21 16 13 7 4SD(SS)m10/7 4SD(SS)10/7 1.1 1.5 2" 42 41 39 37 34 29 22 17 10 4SD(SS)m10/9 4SD(SS)10/9 1.5 2 2" 55 53 50 47 43 37 28 22 13 4SD(SS)m10/13 4SD(SS)10/13 2.2 3 2" 79 77 72 68 63 54 41 37 19 4SD(SS)10/18 3 4 2" 109 107 100 94 87 75 57 51 26 4SD(SS)10/23 4 5.5 2° 139 136 127 121 111 95 72 59 33 4SD(SS)10/28 5.5 7.5 2" 170 166 155 147 135 116 88 68 40 4SD(SS)10/36 7.5 10 2" 218 213 199 189 174 149 113 82 52 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)m10/5-0.75 46x10x10.5 3.81 44×11×11.5 7.6 87x11x11.5 16.18 4SD(SS)m10/7-1.1 53×10×10.5 4.38 47×11×11.5 8.82 100×11×11.5 19.2 4SD(SS)m10/9-1.5 61×10×10.5 5.04 49×11×11.5 10.1 112x11x11.5 22.1 4SD(SS)m10/13-2.2 79x10x10.5 5.76 54×11×11.5 11.5 139x11x11.5| 26.52 Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SD(SS)10/5-0.75 46x10x10.5 3.81 44×11×11.5 7.6 87x11x11.5 16.18 4SD(SS)10/7-1.1 53×10×10.5 4.38 49×11×11.5 8.82 100×11×11.5 19.2 4SD(SS)10/9-1.5 61×10×10.5 5.04 54×11×11.5 10.1 112x11x11.5 22.1 4SD(SS)10/13-2.2 79x10x10.5 5.76 58x11×11.5 11.5 134x11x11.5| 25.52
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 22m³/h (367L/min)
● Head: up to 560m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:2.5%
MOTOR AND PUMP
● Motor adapter in compliance with NEMA standard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)--10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP 68
WARRANTY:1 YEAR
● (According to our general sales conditions)
