4SPm5
Our cables and connectors are used in many different systems, applications and industries, and trusted by professionals, both large and small that use and install it within the many different applications and disciplines that they cover.
Keywords: 182 Series Components | 210 Series Components
Category:
Product description
- Description
- Components
- Performance
-
- Commodity name: 4SPm5
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68WARRANTY:1 YEAR
● (According to our general sales conditions)
-
COMPONENTS MATERIAL Pump casing AISI 304SS/201SS Outlet AISI 304SS Inlet AISI 304SS Strainer AISI 304SS/201SS Diffuser AISI 304SS Impeller AISI 304SS Pump shaft AISI 304SS/201SS Shaft coupling AISI 304SS/201SS Motor casing AISI 304SS/201SS Mechanical seal Graphite-ceramic/TC Top chock Cast-Cu/Cast-iron Motor shaft AISI 304SS Bearing NSK/C&U Seal lubricant oil 10# White Oil -

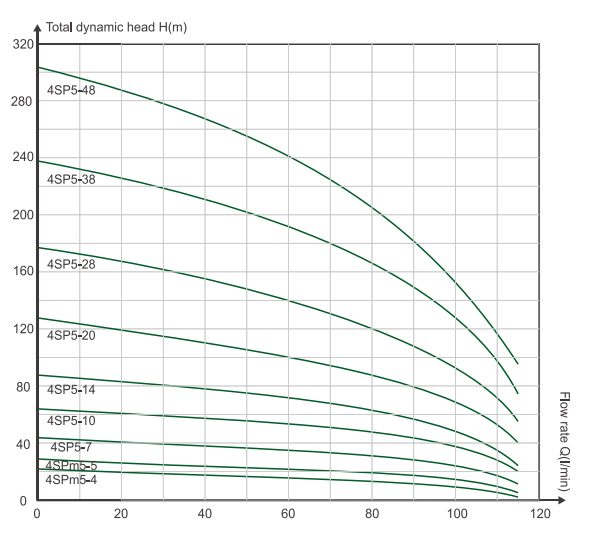

PERFORMANCE TABLE
Type Motor power Delivery N≈2850r/ min 1~
220V-240V3~
380-415VKW HP Q m³/h 0 1.8 2.4 3 3.6 4.2 4.8 5.4 6 6.6 7.2 l/ min 0 30 40 50 60 70 80 90 100 110 120 4SPm5/4 0.37 0.5 H(m) 25 23 22 21 20 19 18 17 14 11 8 4SPm5/5 0.55 0.75 32 29 28 27 25 24 23 22 18 14 10 4SPm5/7 4SP5/7 0.75 1 44 41 39 37 35 34 32 30 25 20 14 4SPm5/10 4SP5/10 1.1 1.5 63 58 56 53 50 48 46 44 35 28 20 4SPm5/14 4SP5/14 1.5 2 88 81 78 74 70 67 64 61 49 39 28 4SPm5/20 4SP5/20 2.2 3 126 116 112 106 100 96 91 87 70 56 40 4SP5/28 3 4 176 162 157 148 140 134 127 122 98 78 56 4SP5/38 4 5.5 239 220 213 201 190 182 173 165 133 106 76 4SP5/48 5.5 7.5 302 278 269 254 240 230 218 209 168 134 96 PACKAGING INFORMATION
Model
Single-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SPm5/4-0.37 44×11×11.5 7.6 65x11x11.5 13.48 4SPm5/5-0.55 47×11×11.5 8.82 70×11×11.5 14.51 4SPm5/7-0.75 36×10×10.5 3.69 49×11×11.5 10.1 77×11×11.5 15.96 4SPm5/10-1.1 43×10×10.5 4.4 54×11×11.5 11.5 89×11×11.5 18.44 4SPm5/14-1.5 53×10×10.5 5.34 58×11×11.5 14.32 103×11×11.5 19.38 4SPm5/20-2.2 67×10×10.5 6.88 67×11×12.5 18.54 126x11x12.5 23.71 Model
Three-phasePump body
size(cm)Pump body
weight(kg)Motor
size(cm)Motor
weight(kg)Whole pump
size(cm)Whole pump
weight(kg)4SP5/7-0.75 36×10×10.5 3.69 49×11×11.5 10.1 77×11×11.5 15.96 4SP5/10-1.1 43×10×10.5 4.4 54×11×11.5 11.5 89×11×11.5 18.44 4SP5/14-1.5 53×10×10.5 5.34 58×11×11.5 14.32 103x11x11.5 19.38 4SP5/20-2.2 67×10×10.5 6.88 62×11×12.5 18.54 121x11x12.5| 22.71
APPLICATIONS
● Water supply from wells or reservoirs
● Agricultural irrigation, livestock watering
● Mining industry, construction drainage and dewatering
● Industrial cooling and processing Water distribution and pressure boosting,Etc
OPERATING CONDITONS
● Flow: up to 10.8m³/h (180L/min)
● Head: up to 302m
● Maximum water temperature:35℃
● Maximum allowable amount of sand:0.3%
MOTOR AND PUMP
● Motor adapter in compliance withNEMAstandard Oil filled rewindable motor
● Maximum immersion depth:120m
● Horse Power range:0.5HP(0.37kw)-10HP(7.5kw)
● -Single phase 220-240V/50Hz (Equip with start control box)
● -Three phase 380-415V/50Hz
● Class of Insulation: B
● Degree of Protection:IP68
WARRANTY:1 YEAR
● (According to our general sales conditions)
